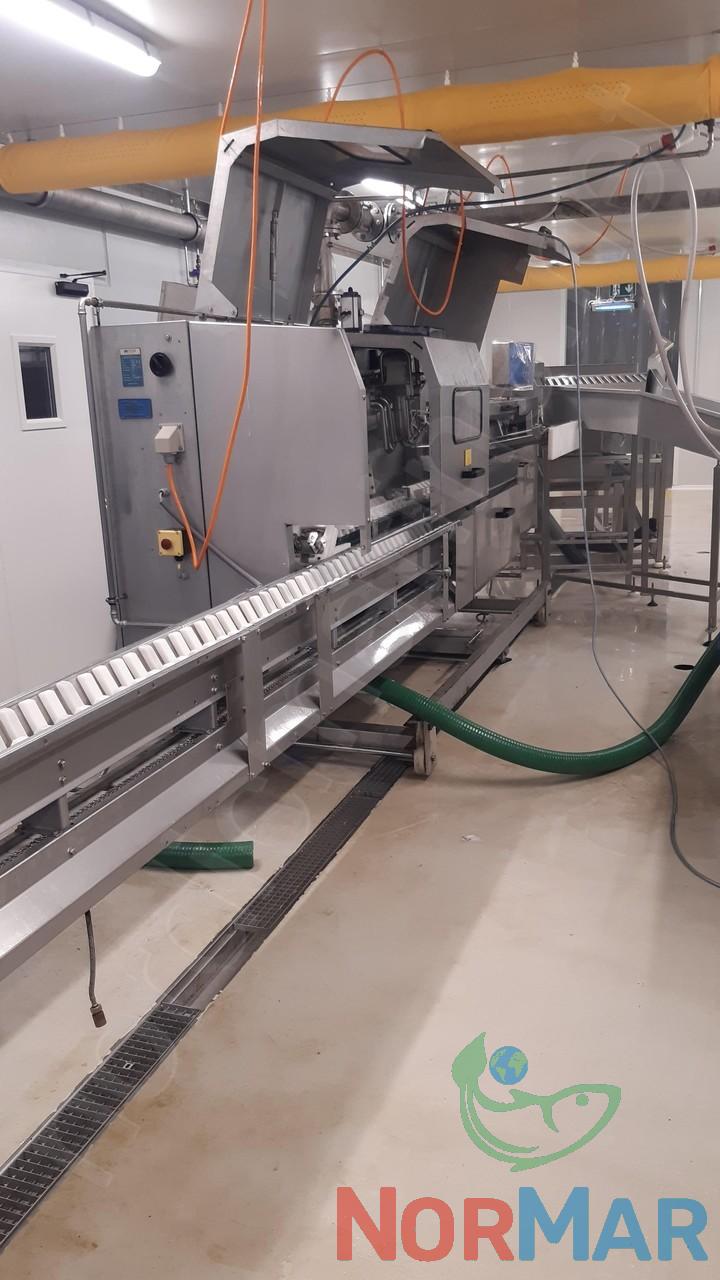

Baader 142 – Salmon Gutting Machine
Baader 142 is designed for automatic gutting of salmon, sea trout, and coho weighing between 2 and 7 kg. The machine can be adjusted for different fish sizes, and conversion kits are available for ranges of 1.3 – 3.5 kg and 5 – 11 kg. A powerful tail clamp secures the fish and ensures gentle transport through the working area. An electronic measuring system determines the exact length and shape of the fish to calculate the optimal cutting positions. After which the machine performs a precise mechanical princess cut. Built-in suction devices and cutting tools remove the viscera and separate the throat from inside the head while leaving the gills intact.
This machine frame is made of stainless steel and food-grade materials. It uses a closed vacuum pipeline system that prevents splashing of blood or entrails. The vacuum and cyclone system maintain cleanliness and minimizes product loss. Knives and cutting tools are easily replaceable and serviceable. It is recommended to use NM61 knife sharpening machine.
Baader 142 offered by us has been fully overhauled and is in excellent working condition. The package could be equipped with all necessary components for operation – vacuum pump, cyclone, and inspection belts, if needed. The machine can be integrated into production lines with other equipment, such as grading and sorting machines, fish stunning system Baader 101, and a screw bleeding and chilling tank.
Baader 142 Specifications:
• Fish type: salmon, sea trout, coho
• Weight range: 2 – 7 kg (could be extended by using extra kit)
• Capacity: up to 16 fish per minute
• Water consumption: approx. 10 liters per minute
• Power consumption: 4 kW
• Weight (net/gross): 1700 kg
• Condition: overhauled, fully operational
• Additional equipment: vacuum pump, cyclone, inspection belts
• Compatibility: can be combined with other fish grading and sorting machines.
If you are interested in this refurbished Baader 142 or have any questions, please contact us – we’ll be glad to assist you.
