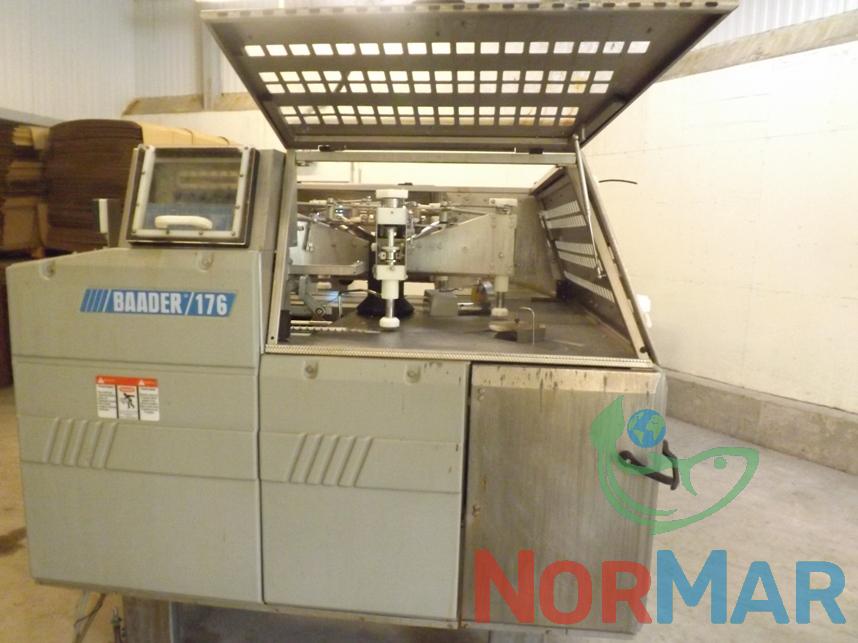

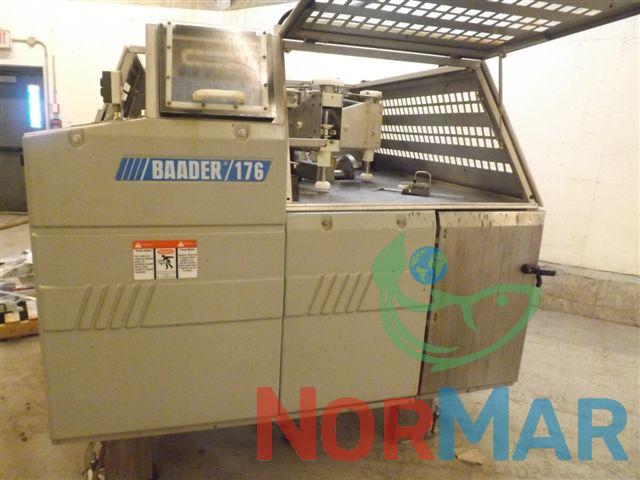

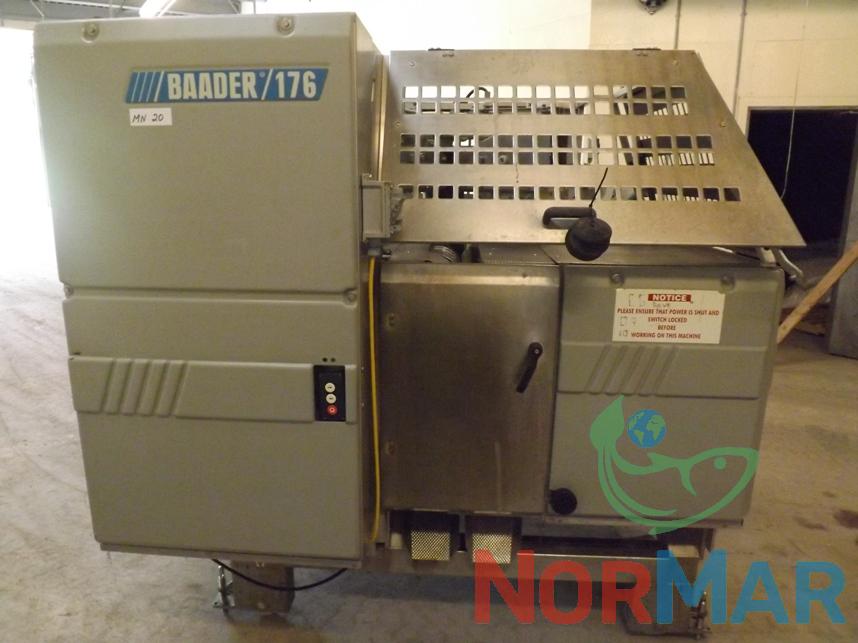

Baader 176 Fish Filleting Machine


Baader 176 Fish Filleting Machine

overhauled and efficiently processed a wide range of flatfish species from 27 cm to 55 cm in total length.


Machine is employing computer-controlled operations, precisely directs electronically measured fish toward the cutting tools for tail and head cuts.

This advanced system ensures optimal cuts and attains a high yield of processed fish. For enhanced versatility,

a customizable trimming unit can be incorporated before the Baader 176 Machine.

This unit, also computer-controlled, can be adjusted to accommodate the specific fish type being processed.

It effectively removes fins, including the attached fatty tissue and a significant portion of the abdominal cavity.

The outcome is a streamlined fillet that requires minimal additional trimming.

The machine is suitable for various flatfish species, including Spotted Flounder,

American Lemon Sole, Plaice, Dab, Flounder Tailed, as well as Halibut.


Technical Specifications for Baader 176 Fish Filleting Machine:

  • Working Range: 27-55 cm
  • Capacity: 25-65 fish per minute
  • Power Consumption: 5 kW (including trimmer: 5.5 kW)
  • Water Consumption: 10 liters per minute
  • Dimensions: 3350 x 2850 x 1900 mm
  • Weight (Net/Gross): 2080/2480 kg
  • Staff Requirement: 1 person
