Description
Lu-Ve Condensing Unit S3HC

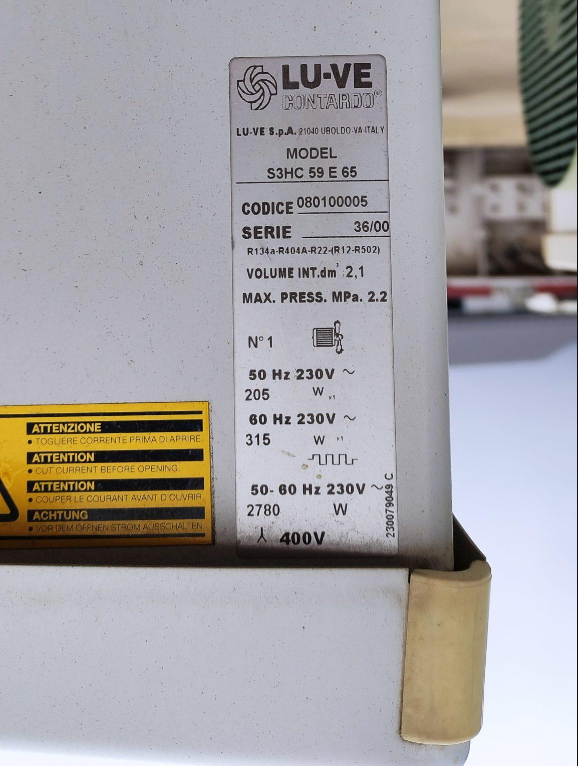

Model: S3HC 59 E 65
Code: 080100005
Lu-Ve Condensing Unit S3HC 59 E 65 is part of the S3HC series, which features an improved electric defrost system. This system is designed to reduce energy consumption and enhance performance. Some key features include:
Improved Defrosting: The new system ensures uniform coil block defrosting and eliminates the risk of steam particle formation.
Energy Efficiency: The unit uses electric heaters with lower power consumption, reducing overall energy use by 25%.
Simplified Maintenance: The design modifications make it easier to maintain the drain tray electric heater.
Defrost System:
Type: Electric defrost
Features:
Improved uniform coil block defrosting
Elimination of steam particle formation
Reduced energy consumption by 25%
Simplified maintenance of the drain tray electric heater
Liquid: R404A, R134a, R12, R502, R407C
TC: 10 °C ÷ -25 °C
Fan: 1 EBM-Papst fan
Fan Diameter: 350 mm
Fan Speed: 1420 RPM
Total Airflow: 2650 m³/h
Power Consumption: 0.18 kW
Dimensions LWH: 800 x 600 x 350 mm
Weight: 35 kg
