GUNTNER GHF Air Cooler Ceiling / Wall

GUNTER GHF 045 2J-17-ENW50 E (x2) (2)-min
GUNTER GHF 045 2J-17-ENW50 E (x2) (3)-min
GUNTER GHF 045 2J-17-ENW50 E (x2) (1)-min
GUNTER GHF 045 2J-17-ENW50 E (x2) (2)-min
GUNTER GHF 045 2J-17-ENW50 E (x2) (3)-min
GUNTER GHF 045 2J-17-ENW50 E (x2) (1)-min
Categories: ,

Description

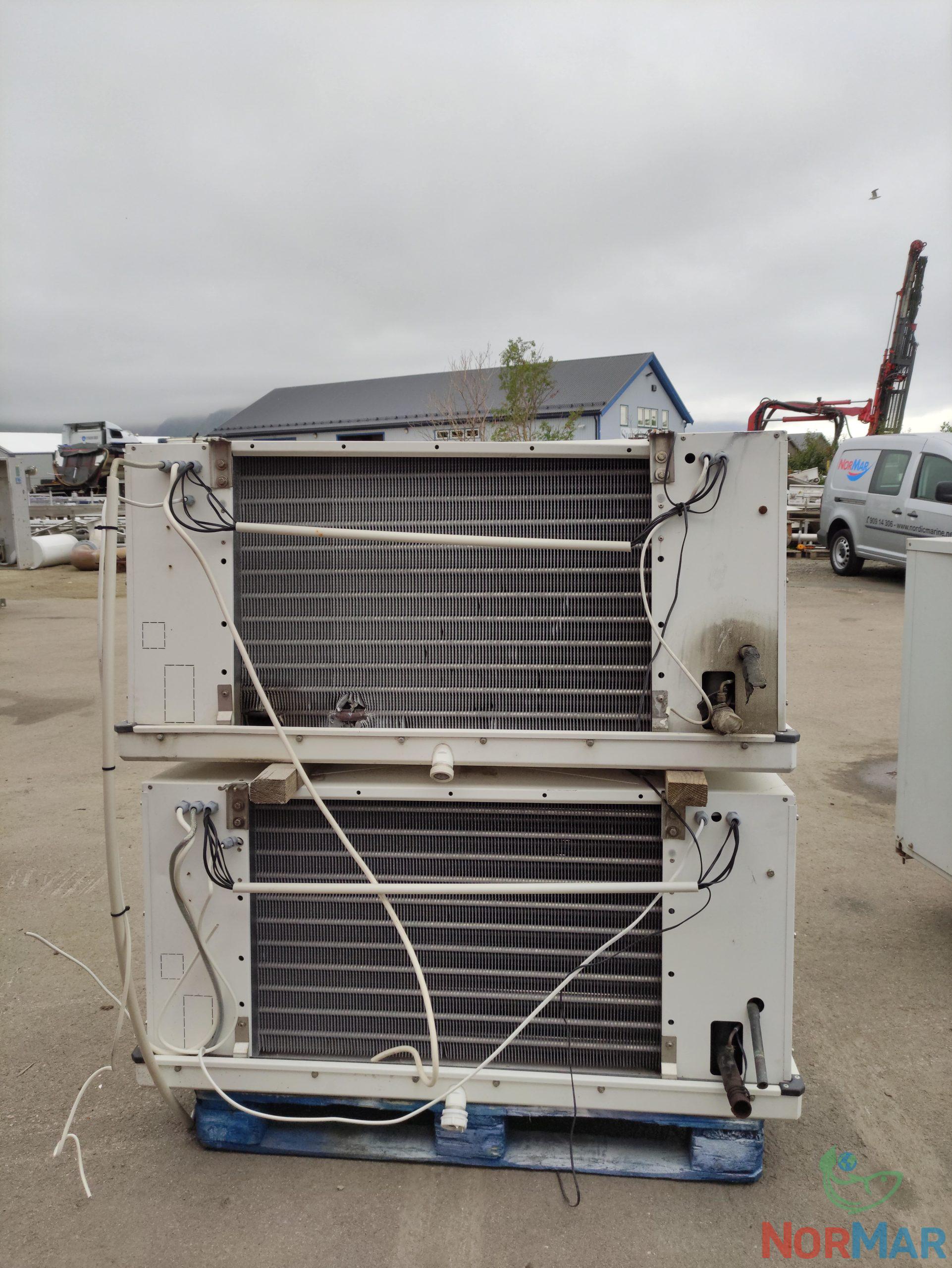

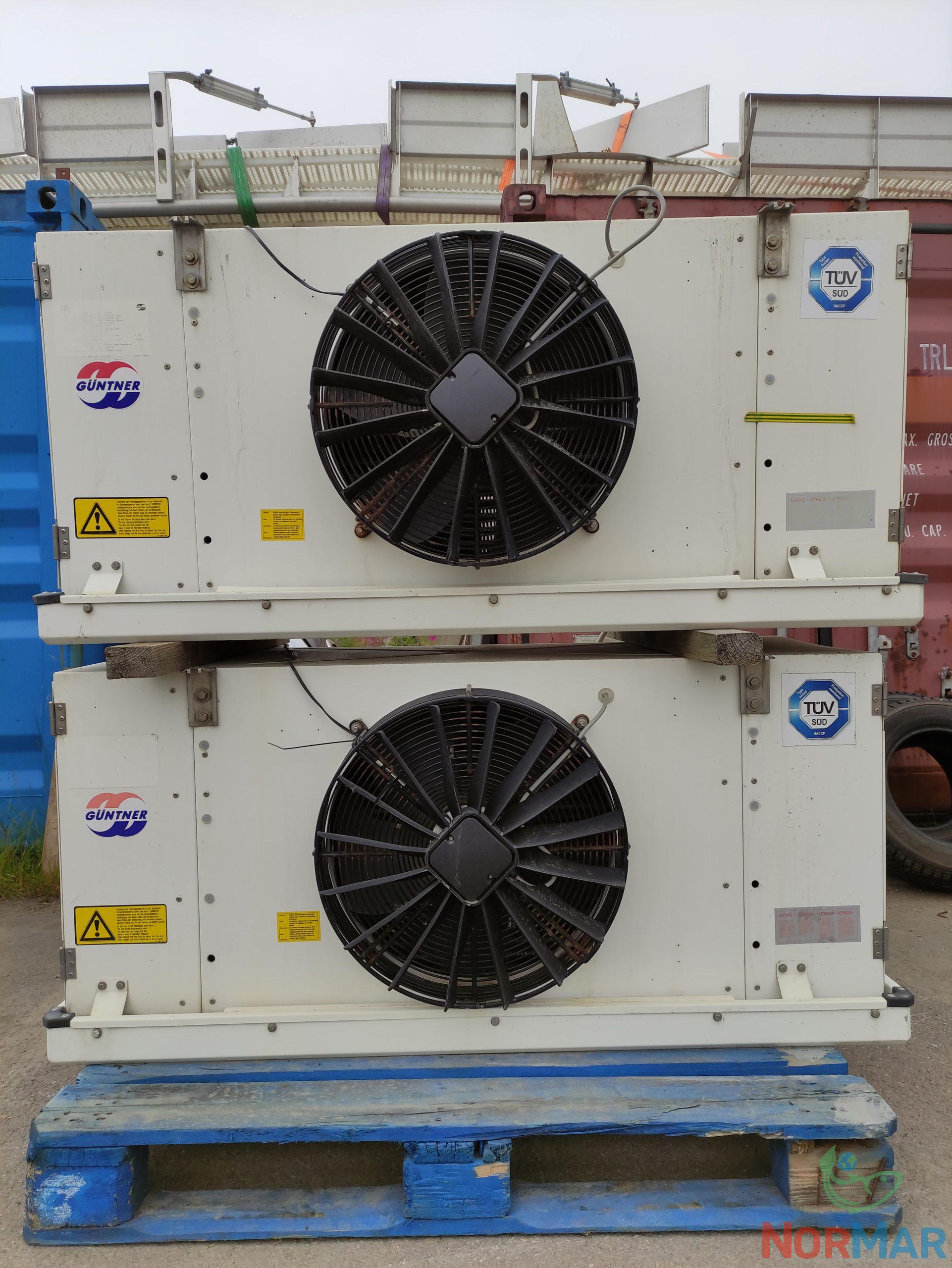

GUNTNER GHF Air Cooler Ceiling / Wall.

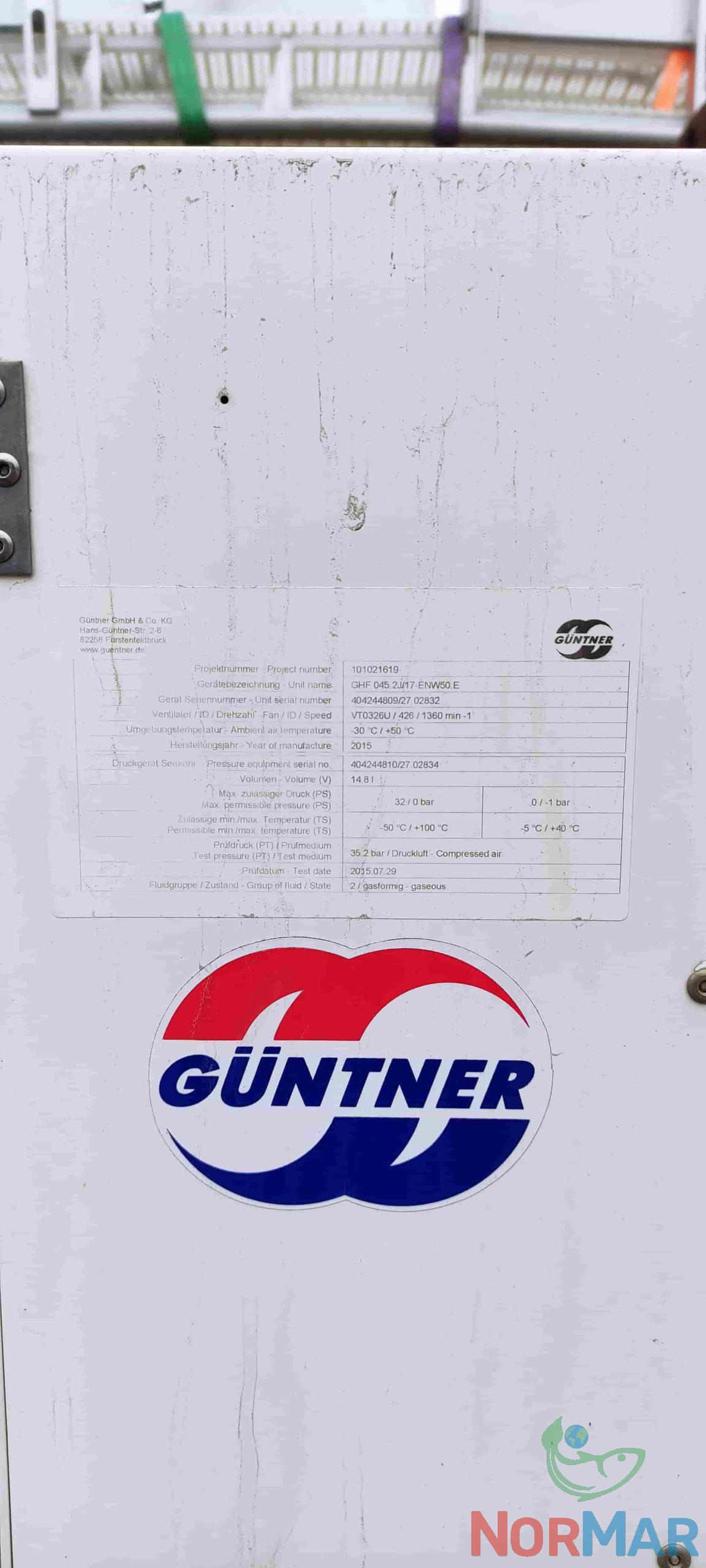

Unit serial number: 404244809/27 02832
Model: 045.2J/17-ENW50 E (x2)
Year of production: 2015

GUNTNER GHF Air Cooler Product Details:
  • Ambient air temperature: -30*C / +50*C
  • Permissible min/max temperature (TS): -50*C/+100*C / -5*C/+40*C
  • Capacity for condition -8*C / 0*C (SC2): 12,2 kW
  • Capacity for condition -25*C / -18*C (SC3): 10 kW
  • Max permissible pressure (PS): 32/0 bar / 0/-1 bar
  • Test pressure: 35.2 bar – compressed air
  • Group of fluid/state: gaseous
  • Surface: 50,4 m²
  • Diameter of fans: 1/500 mm
  • Fin spacing: 7 mm
  • Volume: 14.8 l
  • Air flow: 6440 m3/h
  • Throw distance: 37 m
  • Dimensions LWH: 1470 x 665 x 745 mm
  • Weight: 83,5 kg
