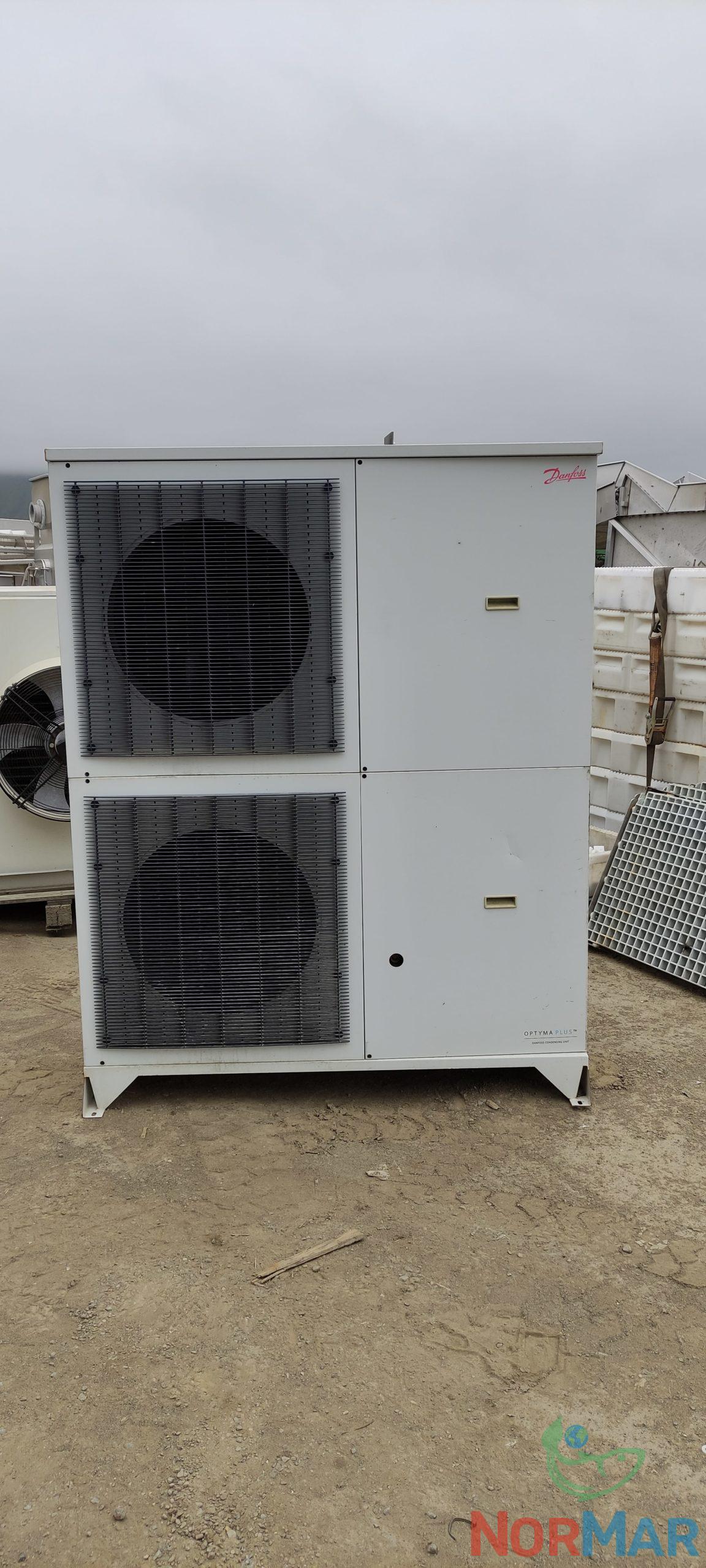

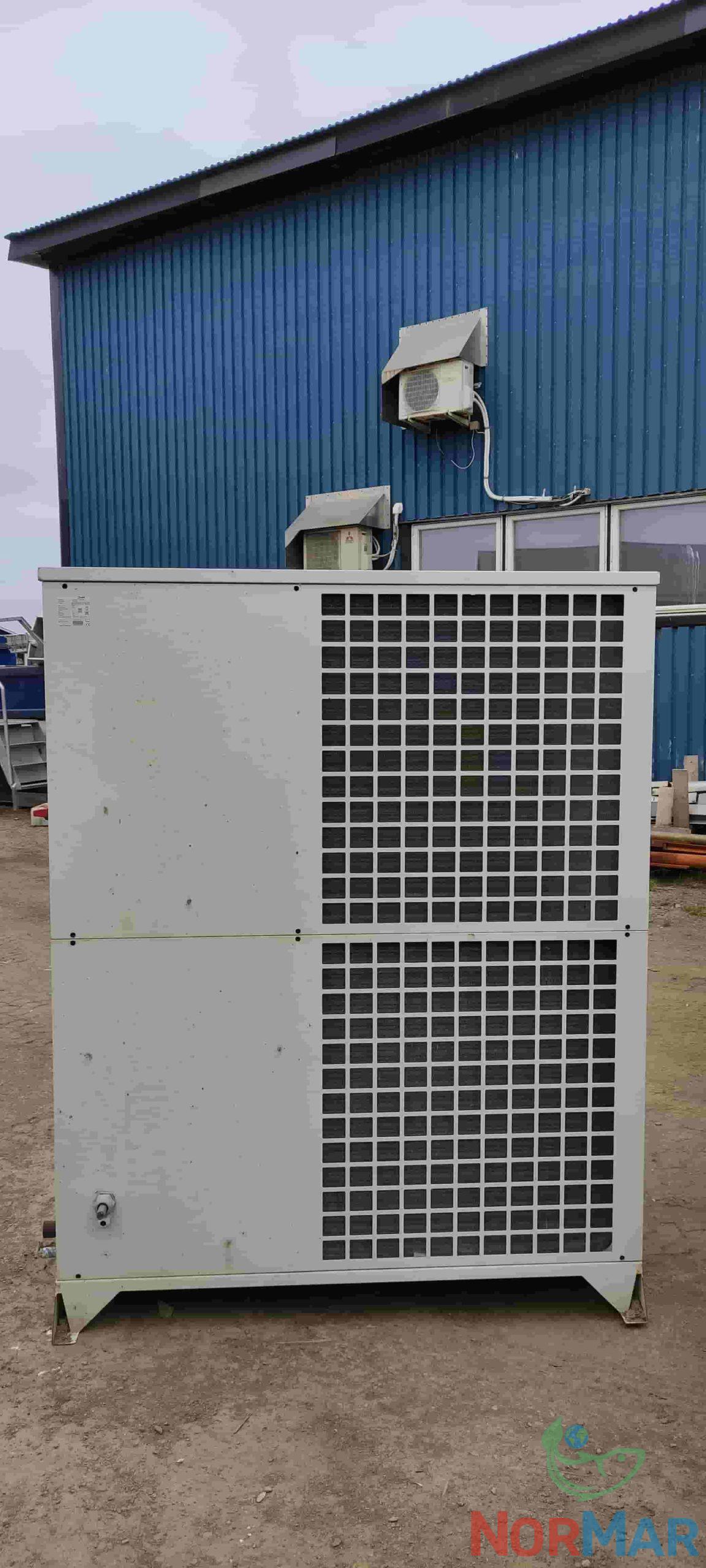

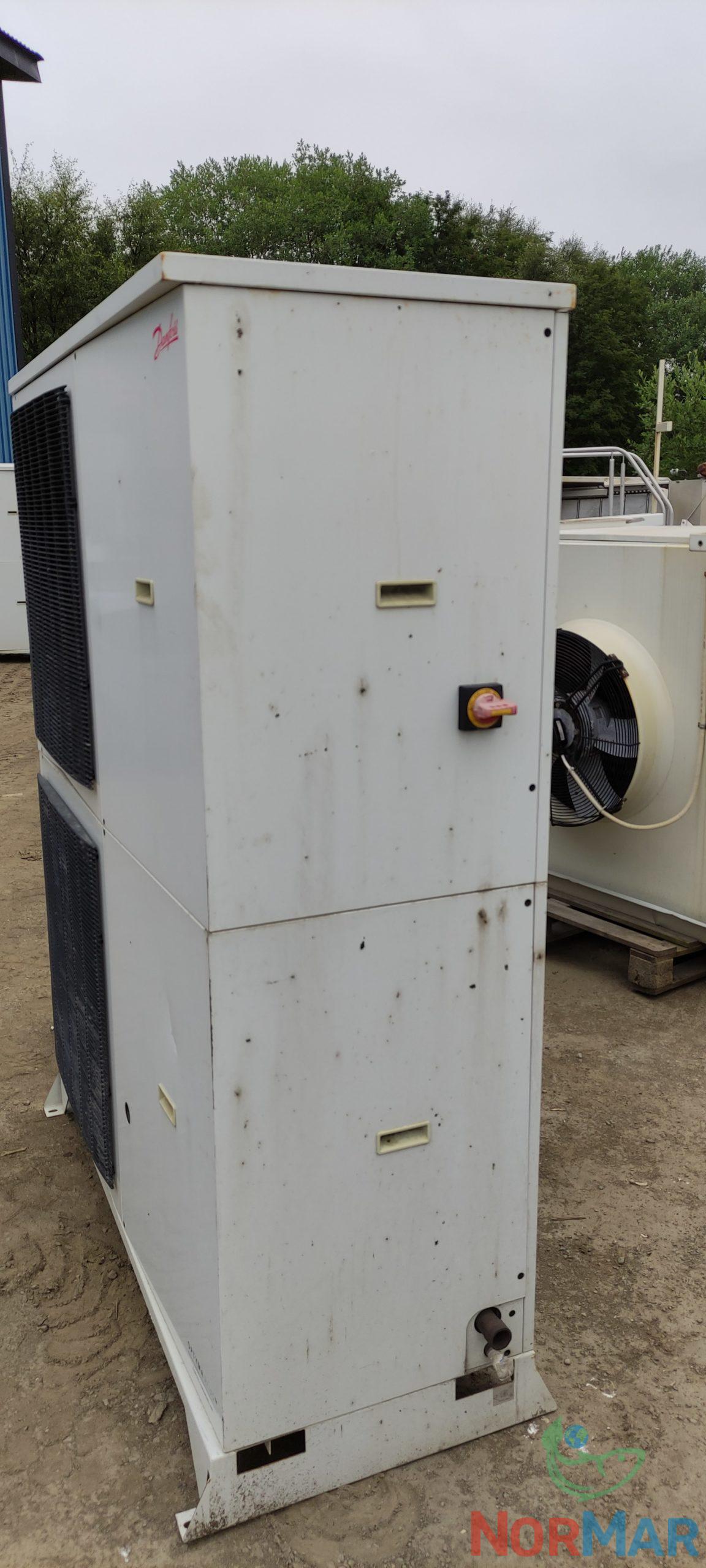

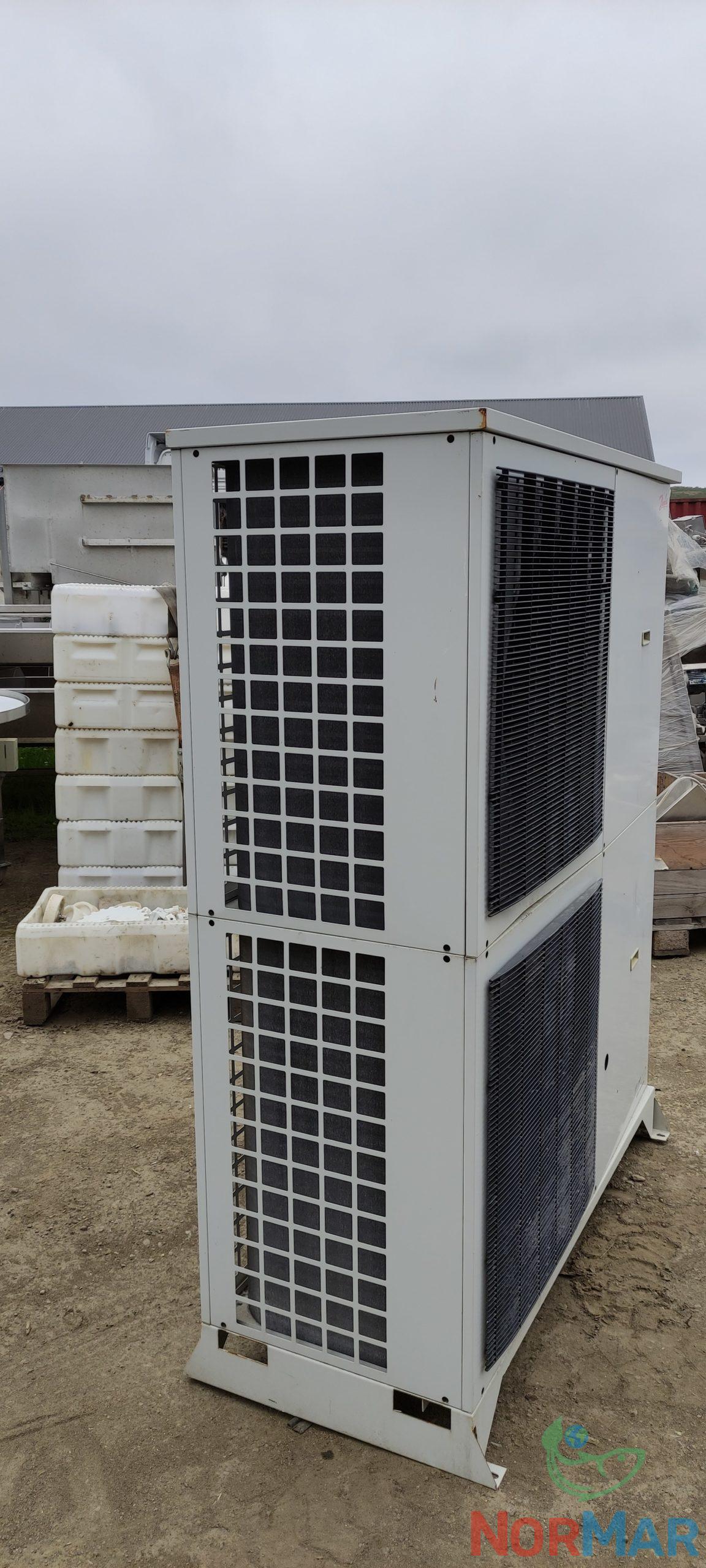

Danfoss Outdoor Condensing Unit Optyma Plus


Danfoss outdoor Condensing Unit Optyma Plus.

Model – OP-MPZC215MTP00E

Danfoss outdoor Condensing Unit Optyma Plus is a unique integral Danfoss condensing unit built around Danfoss components. It is fully factory-built condensing unit ready for quick installation and quiet operation.
It can be located anywhere. Acoustic insulation and fan speed reduction during low capacity operation periods makes the operation of Optyma Plus so smooth and quiet that it will not disturb the peace in your local environment.

Technical data:
  • Starting current (locked rotor): 105 A
  • Wiring diagram: SP3
  • Supply voltage: 400/3/50 V/Ph/Hz
  • Max. operating current: 27 A
  • Protection: IP54
  • Liquid line connection: 19 mm
  • Suction line connection: 35 mm
  • Collector volume: 14,0 l
  • Sound pressure level: 47 dB(A)
  • Power consumption: 260 W
  • Air throughput: 12.2 m³/h
  • Number of fans: 2 pcs
  • Built-in compressor: MTZ125-4
  • Dimensions LWH: 1420 x 650 x 1794 mm
  • Weight: 329 / 275 kg
  • Housing size: 4
  • Refrigerant: R134a/R404A/R507A/R407C
  • Link to full technical description from Danfoss
