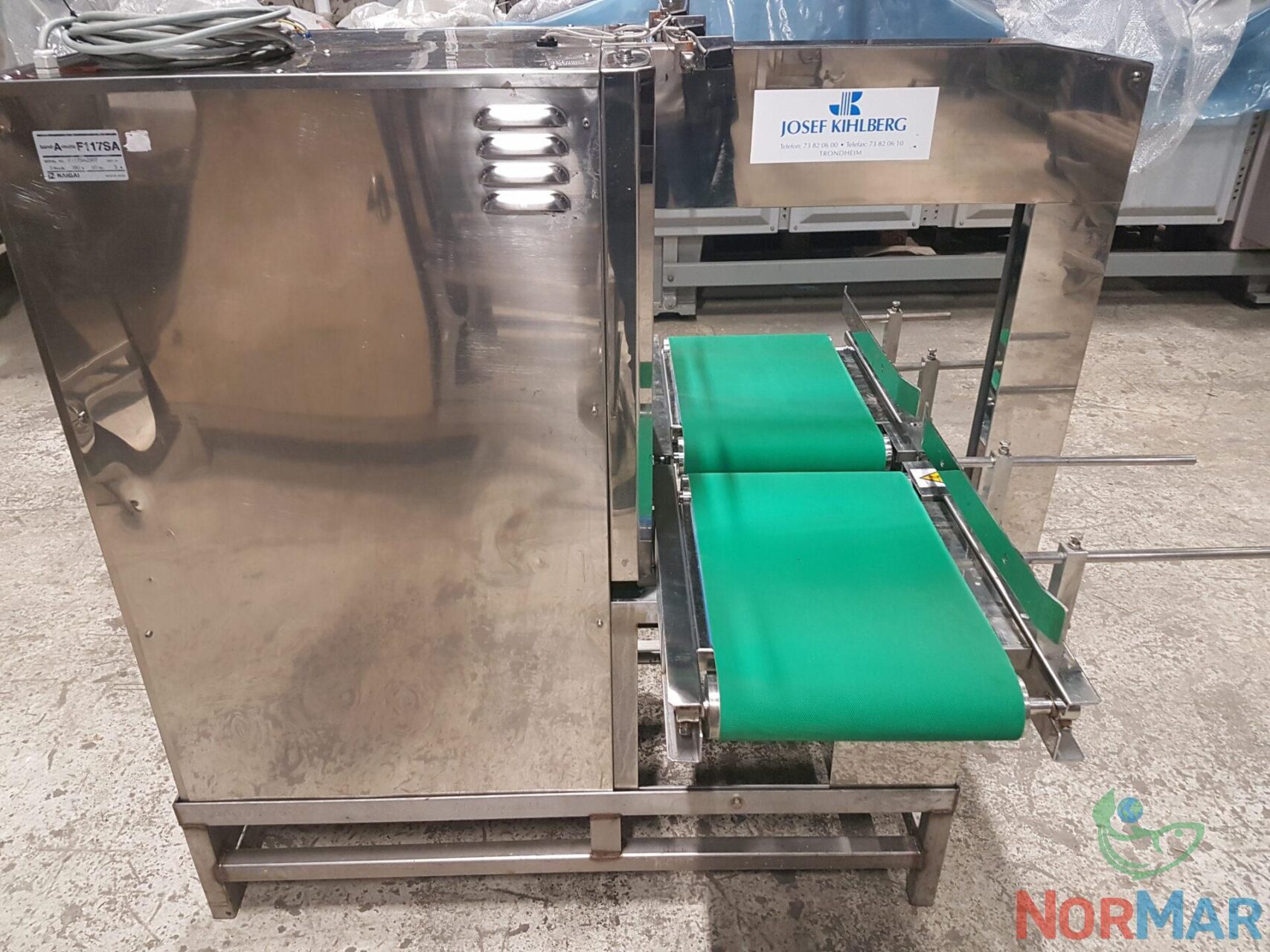

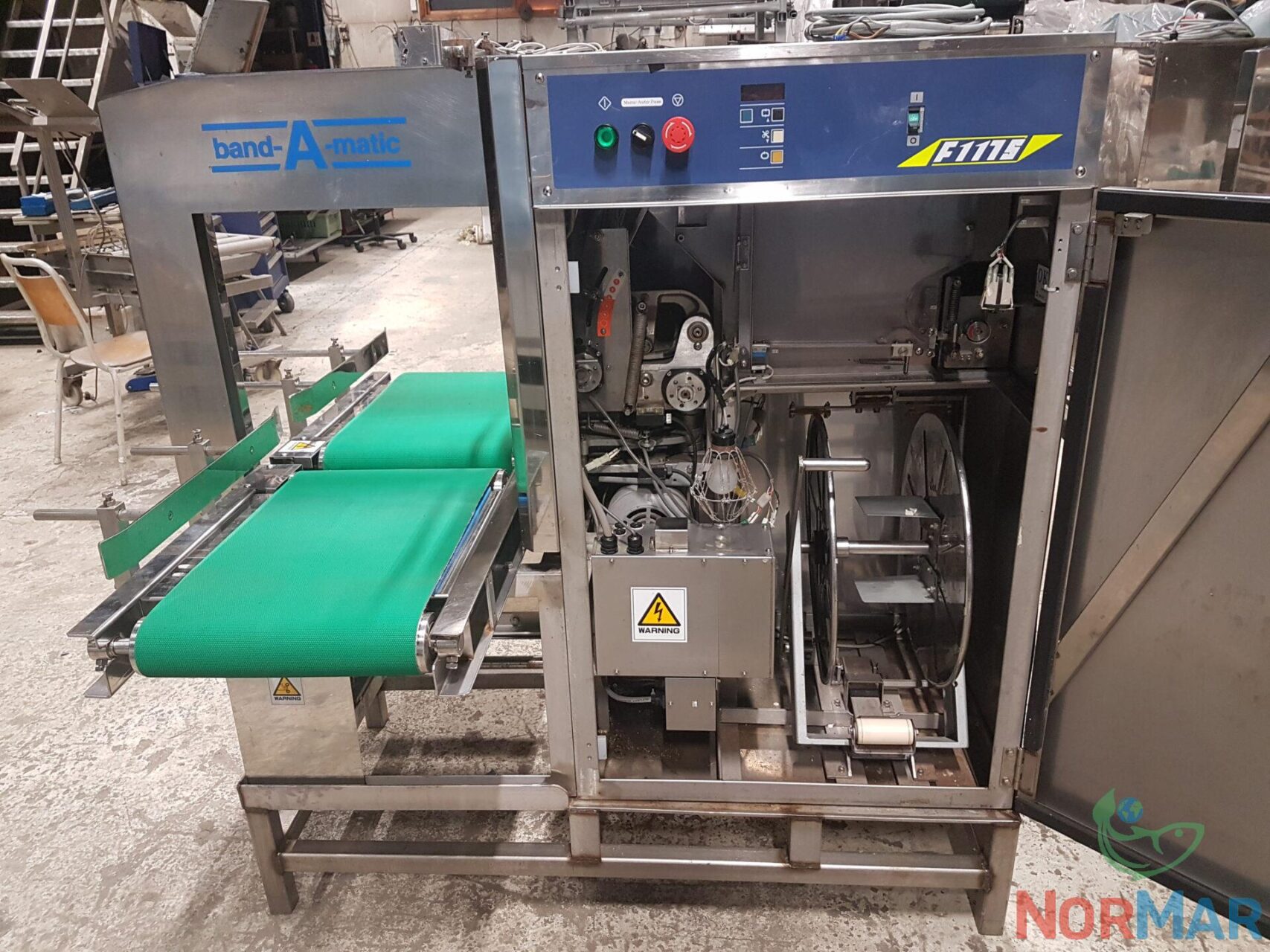

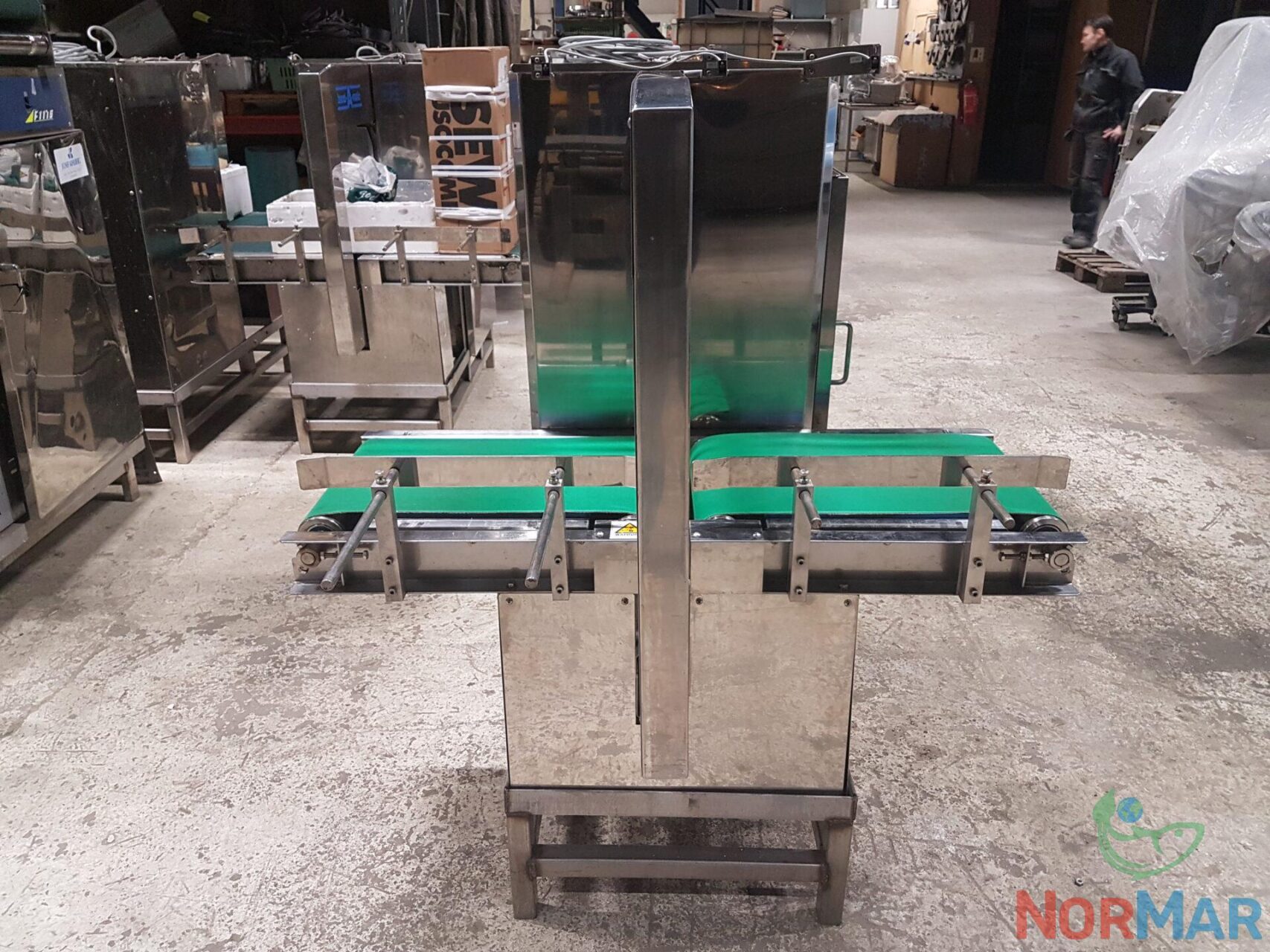

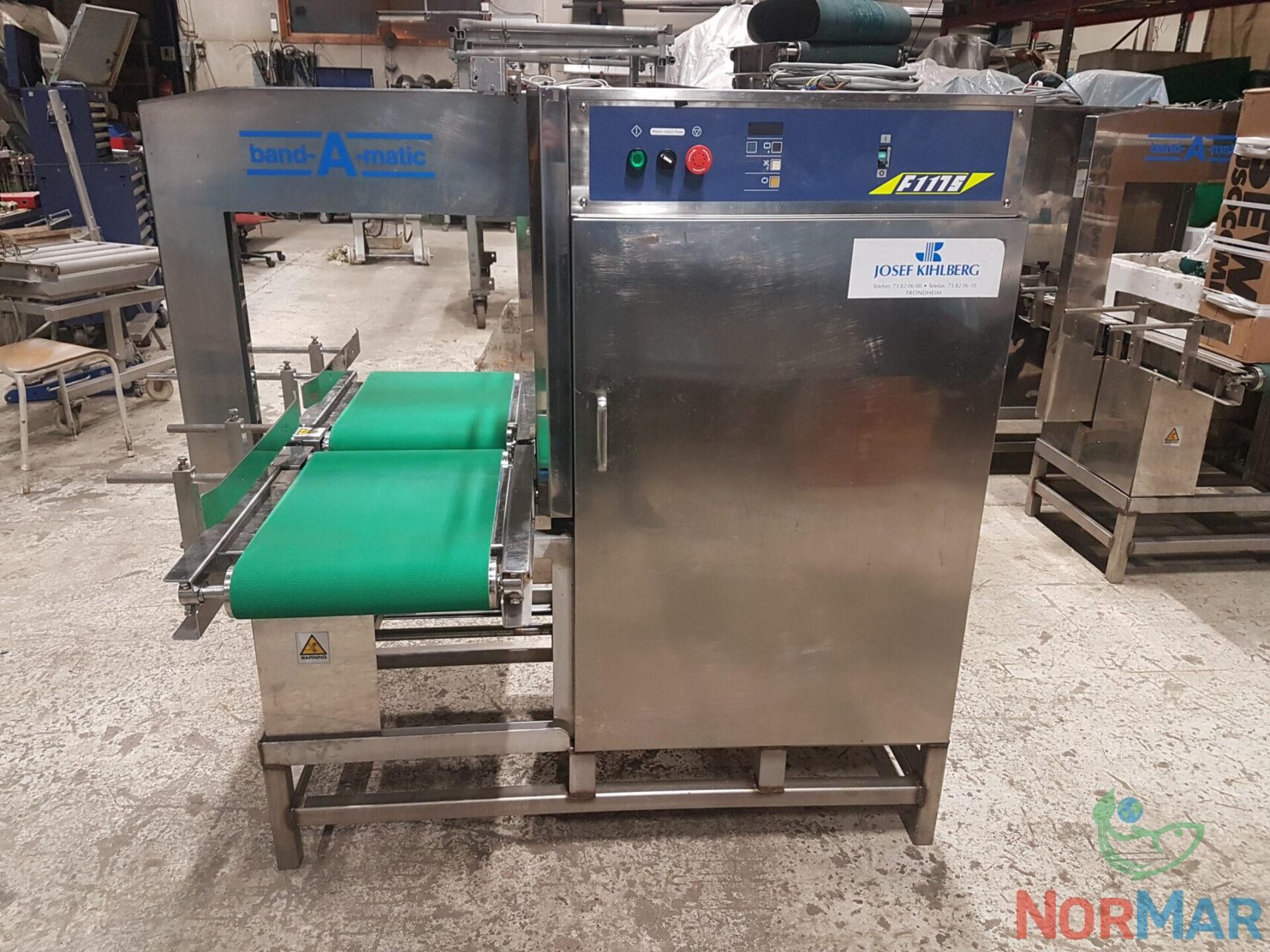

Band-A-Matic F117s Strapping Machine


User-friendly and easy to maintain.

Quick cycle time of only 1.6 seconds.

Constructed with durable stainless steel.

Low voltage for controls and heater.

Equipped with a display featuring self-diagnostic capabilities and adjustable settings.

Includes a self-adjusting super alloy cutter.

Energy-efficient with motor cut-off after 16 seconds of idle time.

Automatically stops when the strap runs out.

Extended Microprocessor control for efficient management of the conveyor system.

Photocells ensure accurate strap positioning.

Option to choose between 1, 2, or 3 straps per box.

Geared conveyor motor located inside the cabinet.

Power supply: 3-phase 220/380/400 V, 50Hz/60Hz.

Power consumption: 950 W.

Dimensions (LxWxH): 1470x1200x1335 mm.

Conveyor belt width: 670 mm to 730 mm.

Arch measurements:

  • Width: 500 mm.
  • Height: 400 mm.

Box measurements:

  • Width: 150 mm (minimum) to 500 mm (maximum).
  • Height: 70 mm (minimum) to 400 mm (maximum).
