Description

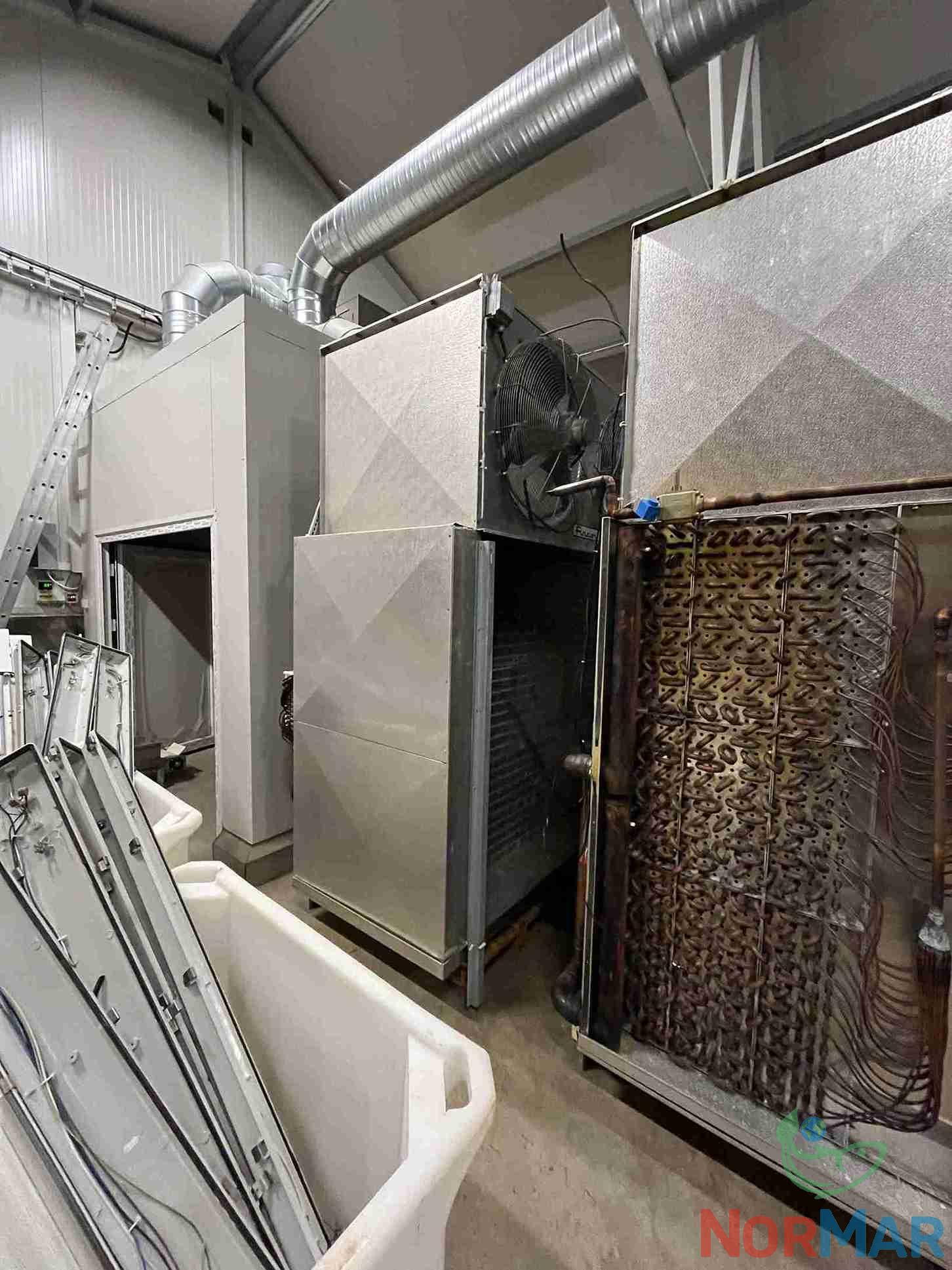

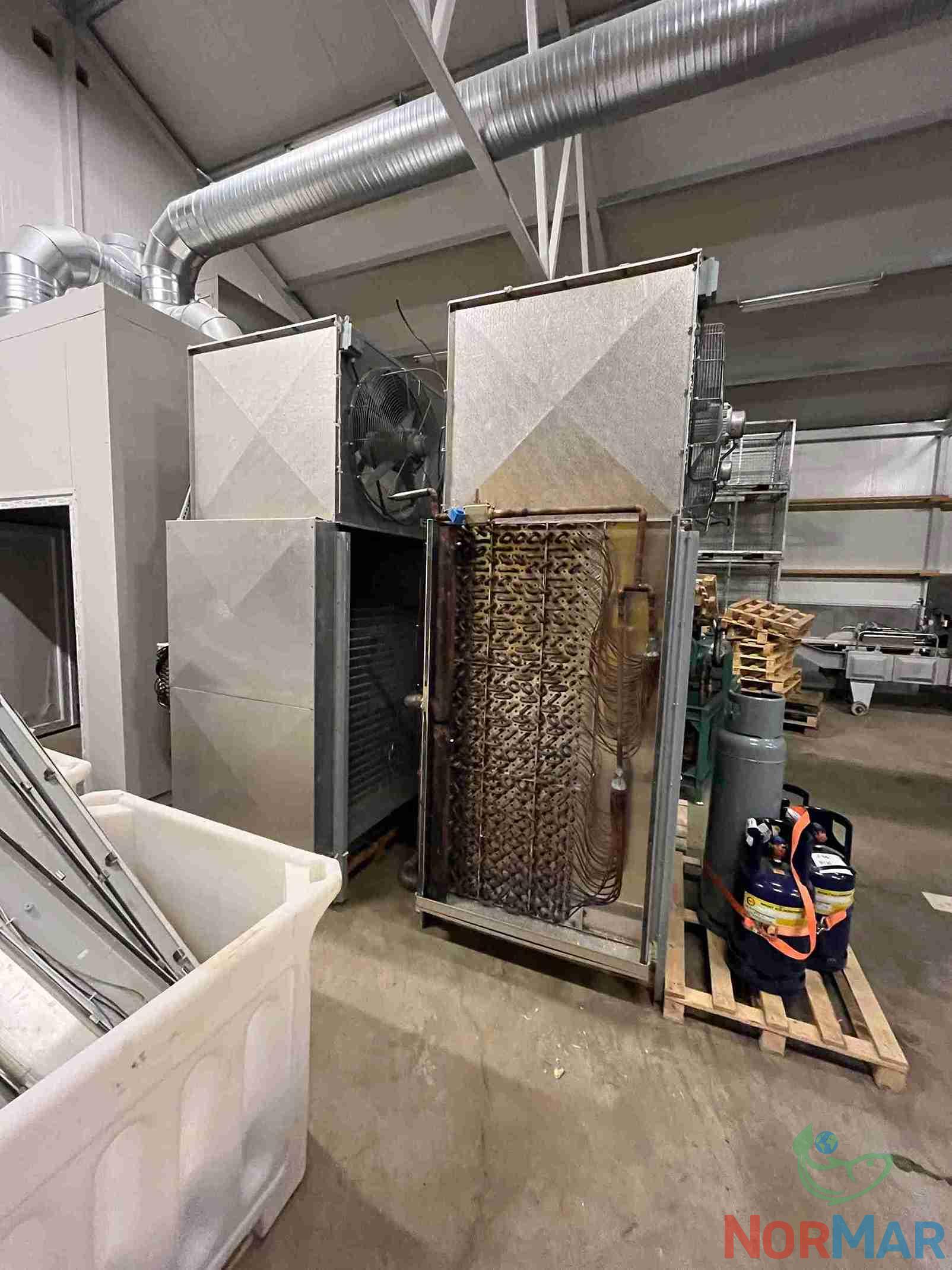

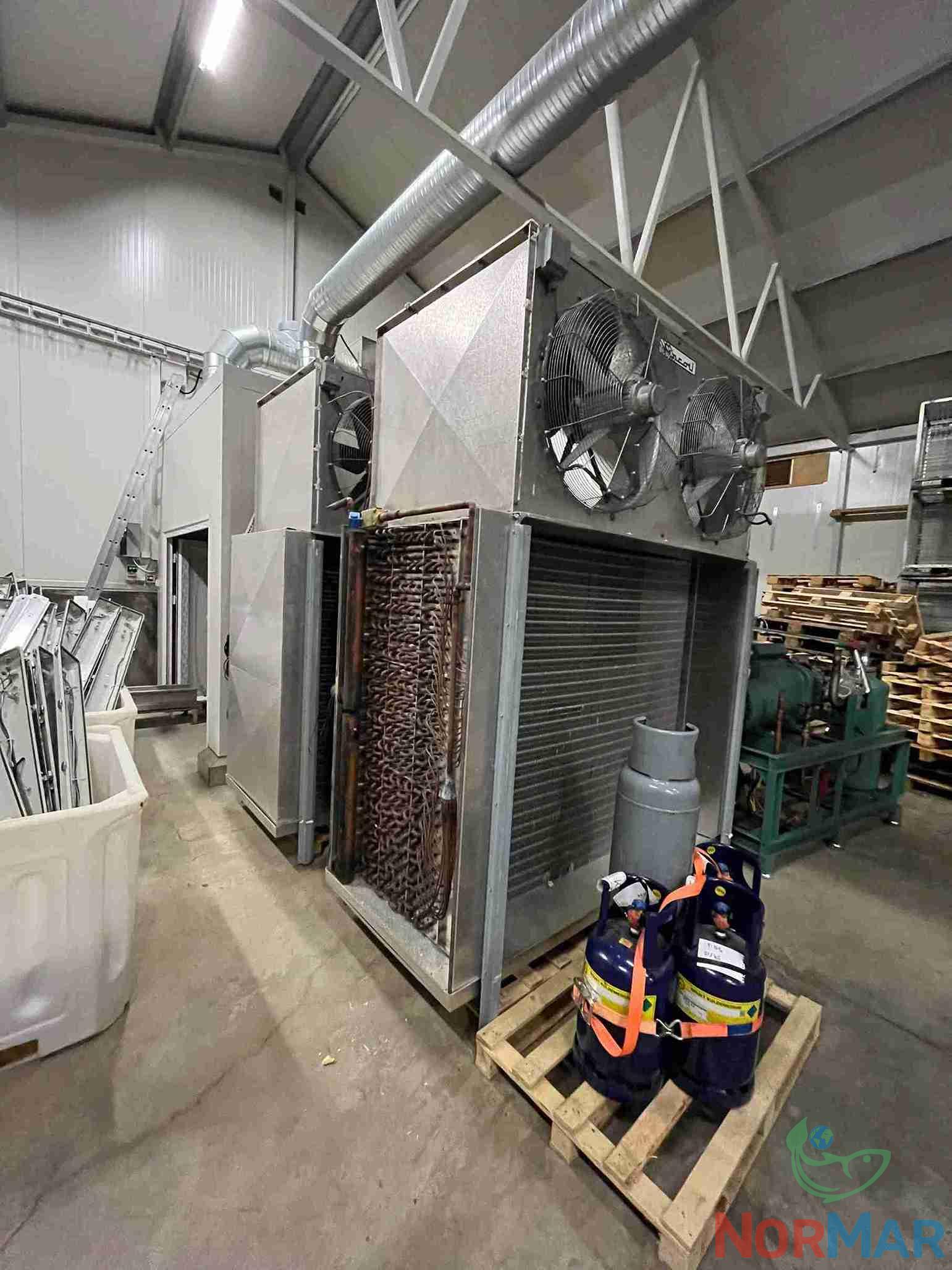

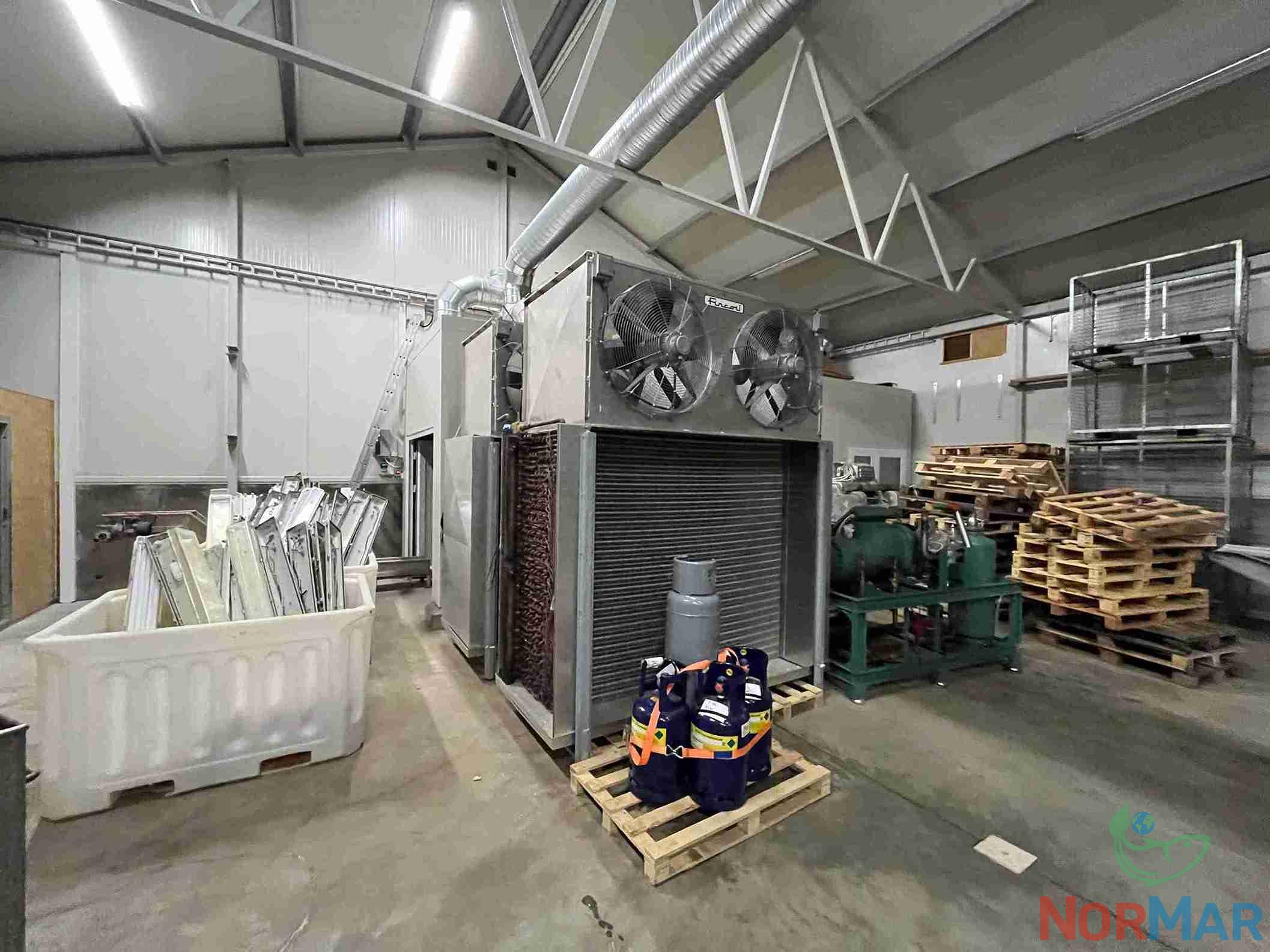

Bitzer complete flow freezer.
Condition – very good, little used.
Cooling medium – R404A
Cooling prefomance: 202 KW
Evaporation temperature: -25 C
Condensation temperature: +25 C
Insulation suction line: 32 mm
PS HD 28bar
ND 19 bar

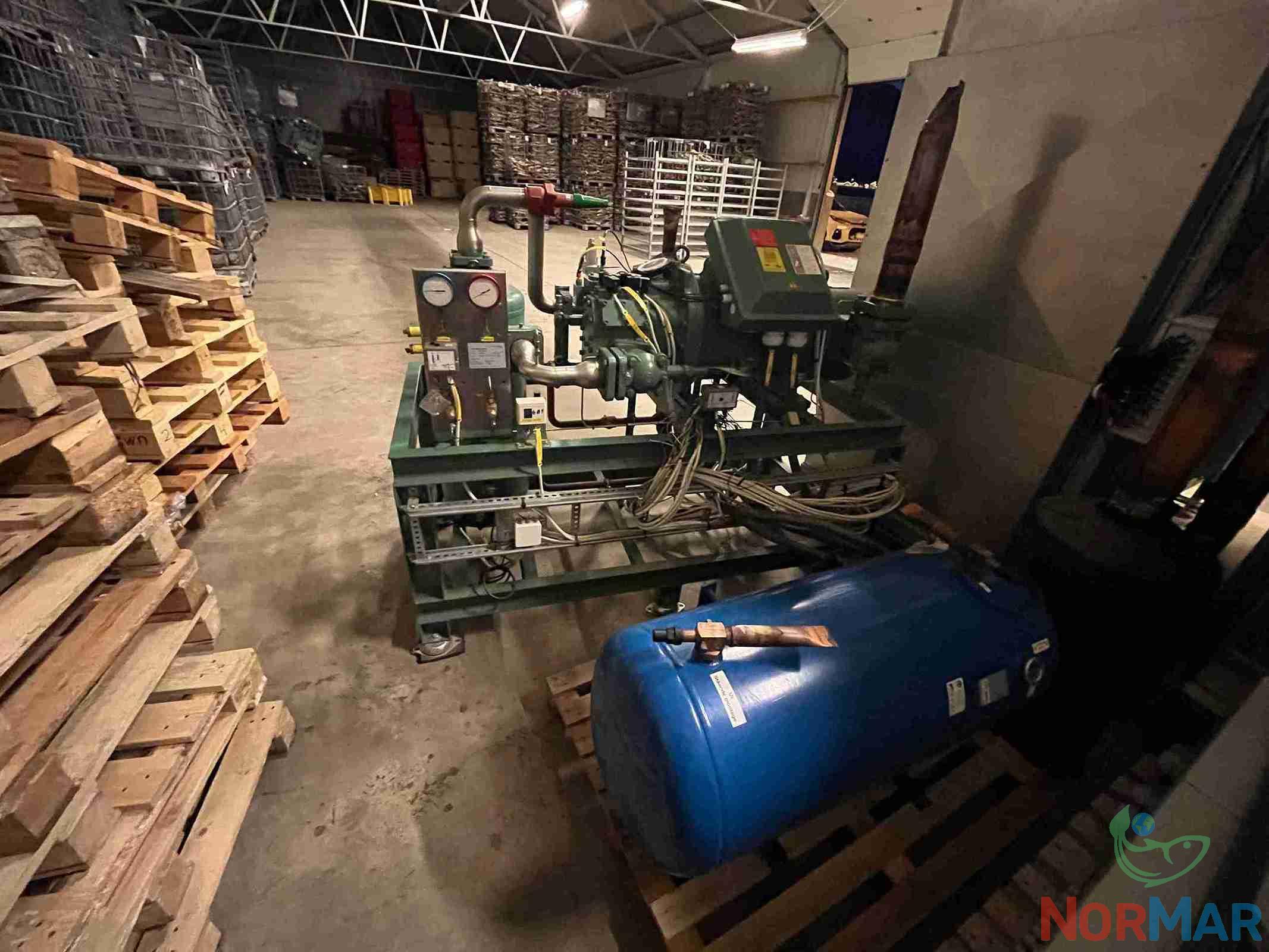

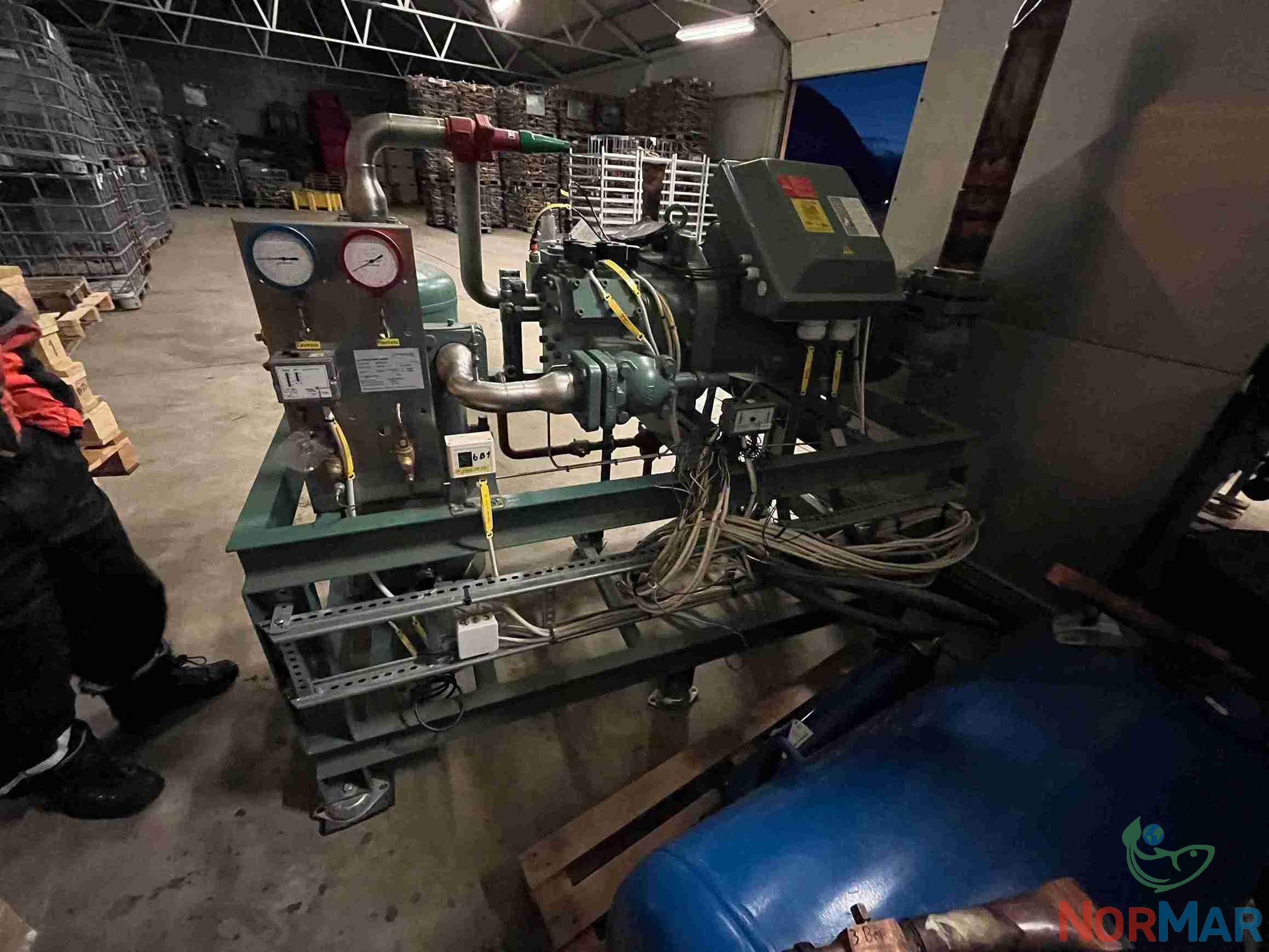

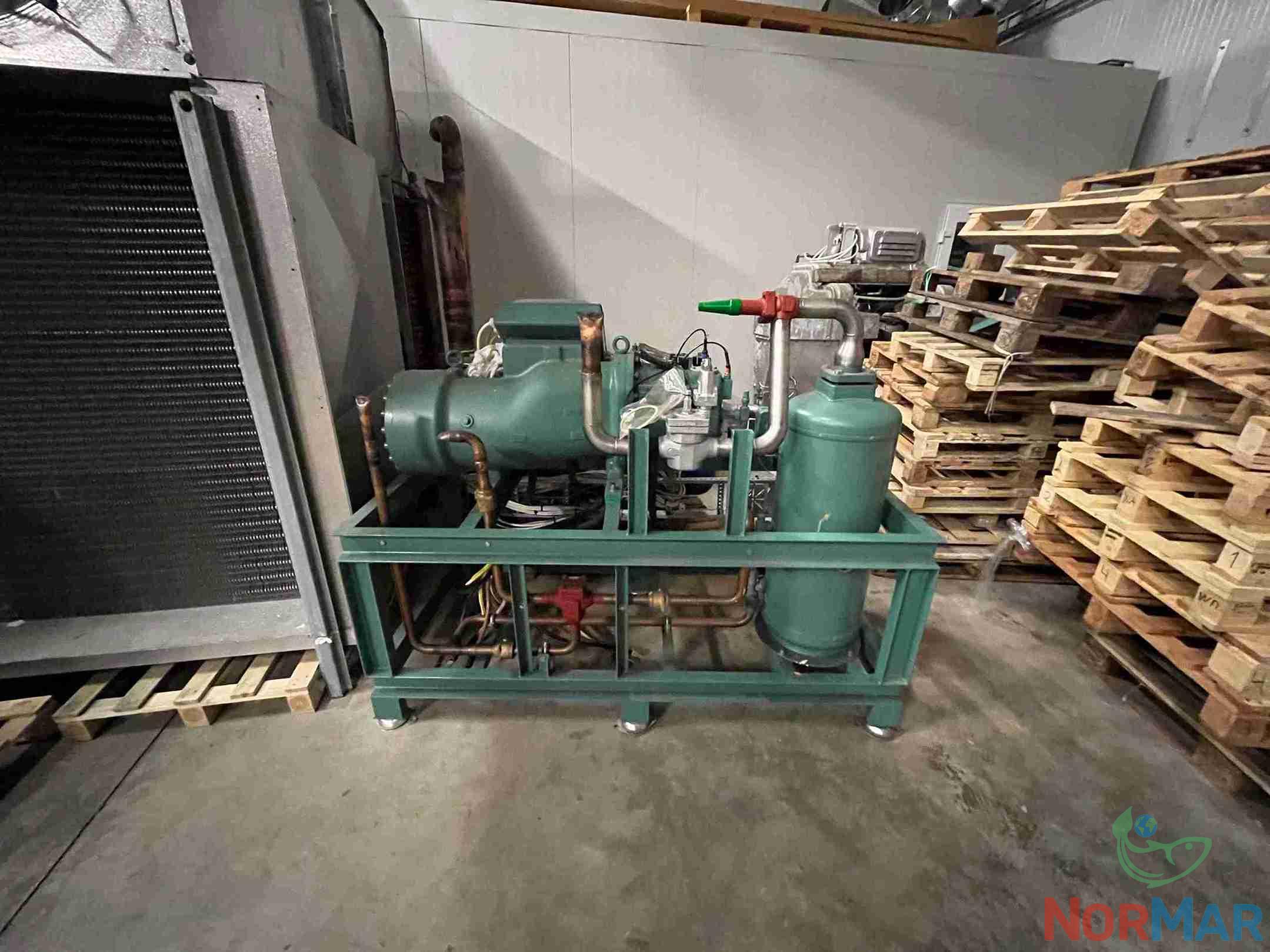

Kompressor data:
| Displacement (2900 RPM 50 Hz) | 535 m³/h |
| Displacement (3500 RPM 60 Hz) | 646 m³/h |
| Max. pressure (LP/HP) | 19 / 28 bar |
| Oil type R22 | B150SH, B100 (Option) |
| Oil type R134a/R404A/R507A/R407A/R407F | BSE170 |
| Oil type R448A/R449A/R454C | BSE170 |
| Motor data | |
| Motor version | 1 |
| Motor voltage (more on request) | 380-415V PW-3-50Hz |
| Max operating current | 274.0 A |
| Starting current (Rotor locked) | 729.0 A D / 1114.0 A DD |
| Max. Power input | 175,0 kW |
| Extent of delivery (Standard) | |
| Discharge gas temperature sensor | Standard |
| Start unloading | Standard |
| Oil flow control | SE-B3 (Standard) |
| Motor protection | SE-E1 + SE-B3 (Standard), SE-E3 (Standard for 660-690V) |
| Capacity control | 100-75-50% or 100-50% (Standard) |
| Enclosure class | IP54 |
